| product name: | PVC Shielded wire (300/300V) |
| Model specification: | RVVP 20*0.5 (216 series) |
| Product Standards: | (REF) JB/T 8734.5-2016 |
| conductor: | 16/0.2 BC (OFC oxygen-free copper), soft conductor stranded structure, suitable for mobile use in general occasions; |

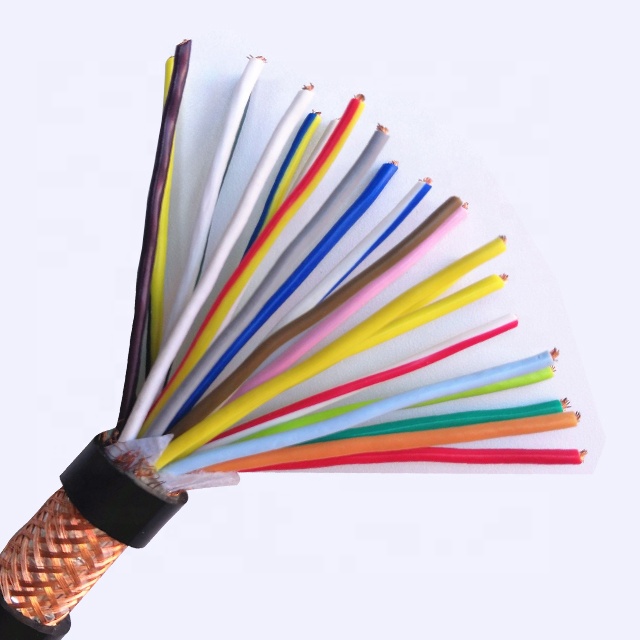

| insulation: | New PVC material, ID2.0, 19-core white (printed numbers 1-19) + two-color (ground wire), convenient for wiring installation and identification; |
| Cable: | 20-core twisted, wrapped waterproof PET tape; |

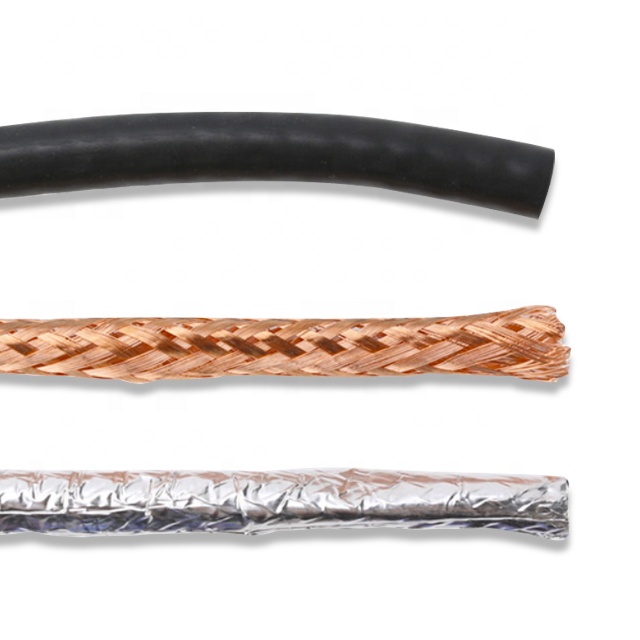

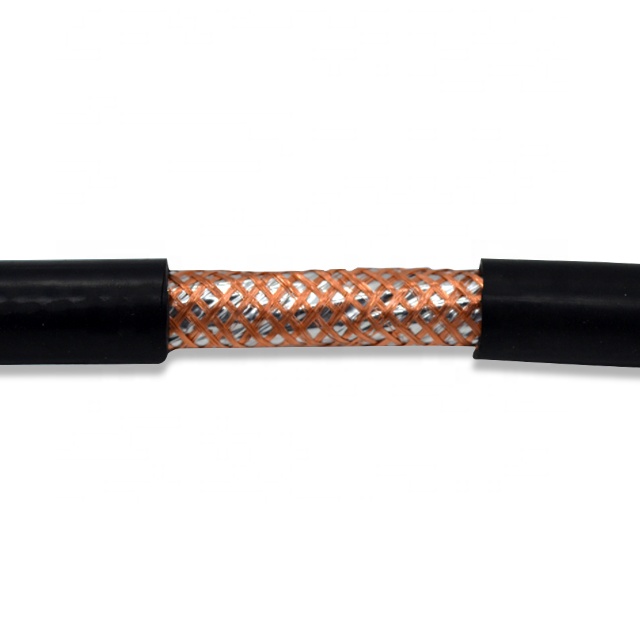

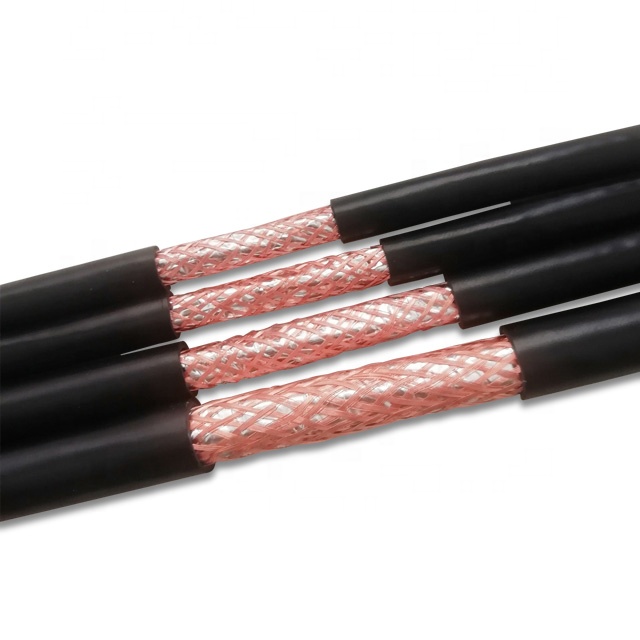

| shield: | Aluminum foil 100% shielding + braided copper mesh 216/0.1 BC, double-layer shielding structure, strong anti-interference ability; |
| jacket: | Black PVC new material, OD13.2, semi-extruded structure, providing the best protection performance; |
| Logo: | Printed meters to ensure the length, easy to cut and measure when using; |

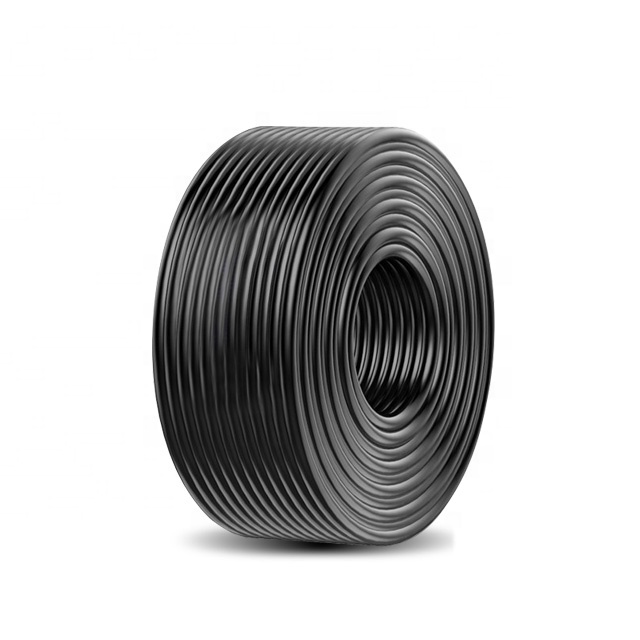

| package: | 100 meters |
| Product Usage: | The power signal control transmission cable for equipment connection is used to connect the equipment to the operation panel and transmit signals; |
| Access control video intercom cable | Credit card machine signal connection cable; | |
| Floor control cable, ladder control cable, audio cable... |
