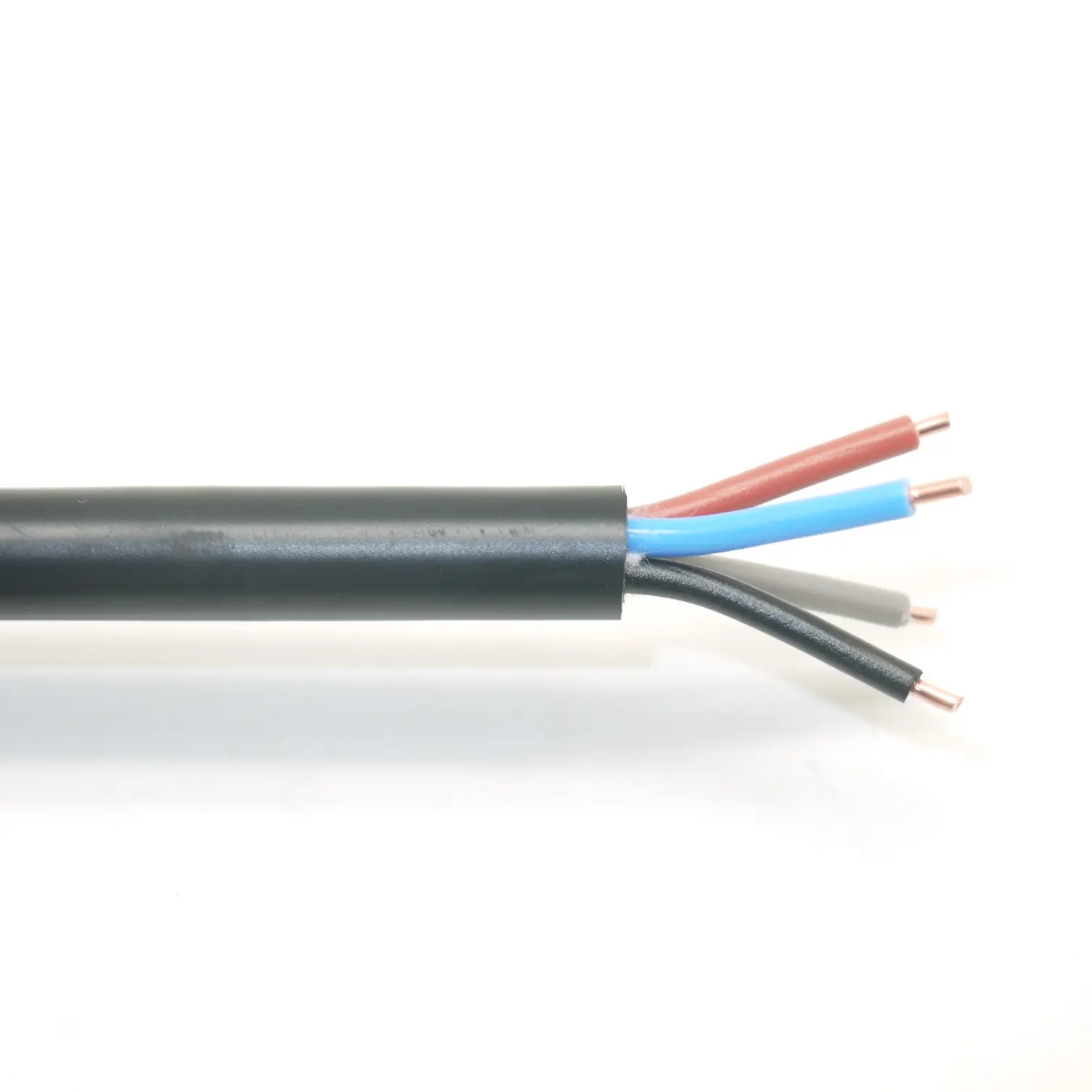

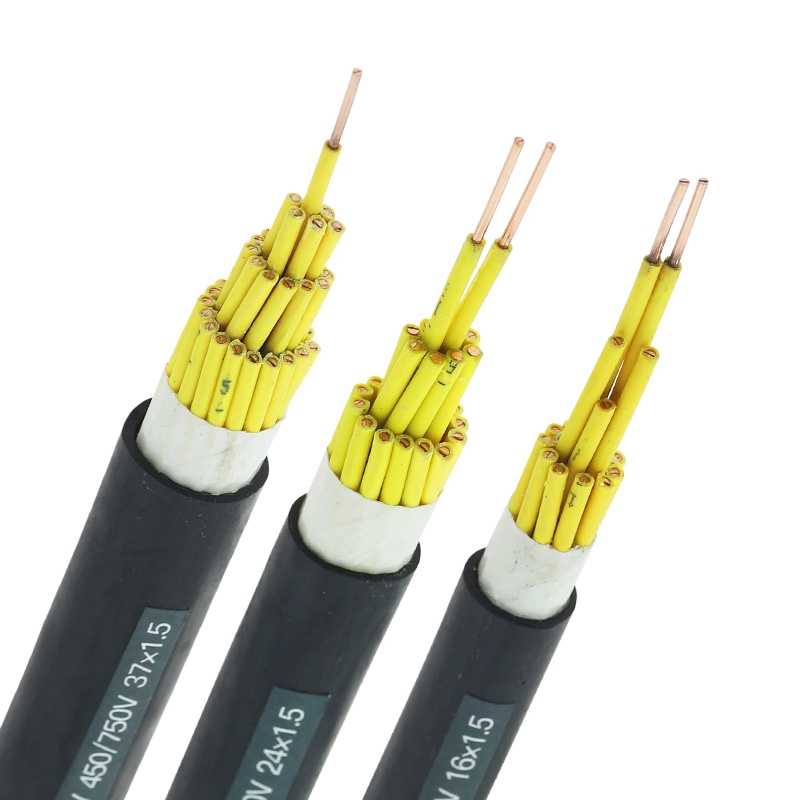

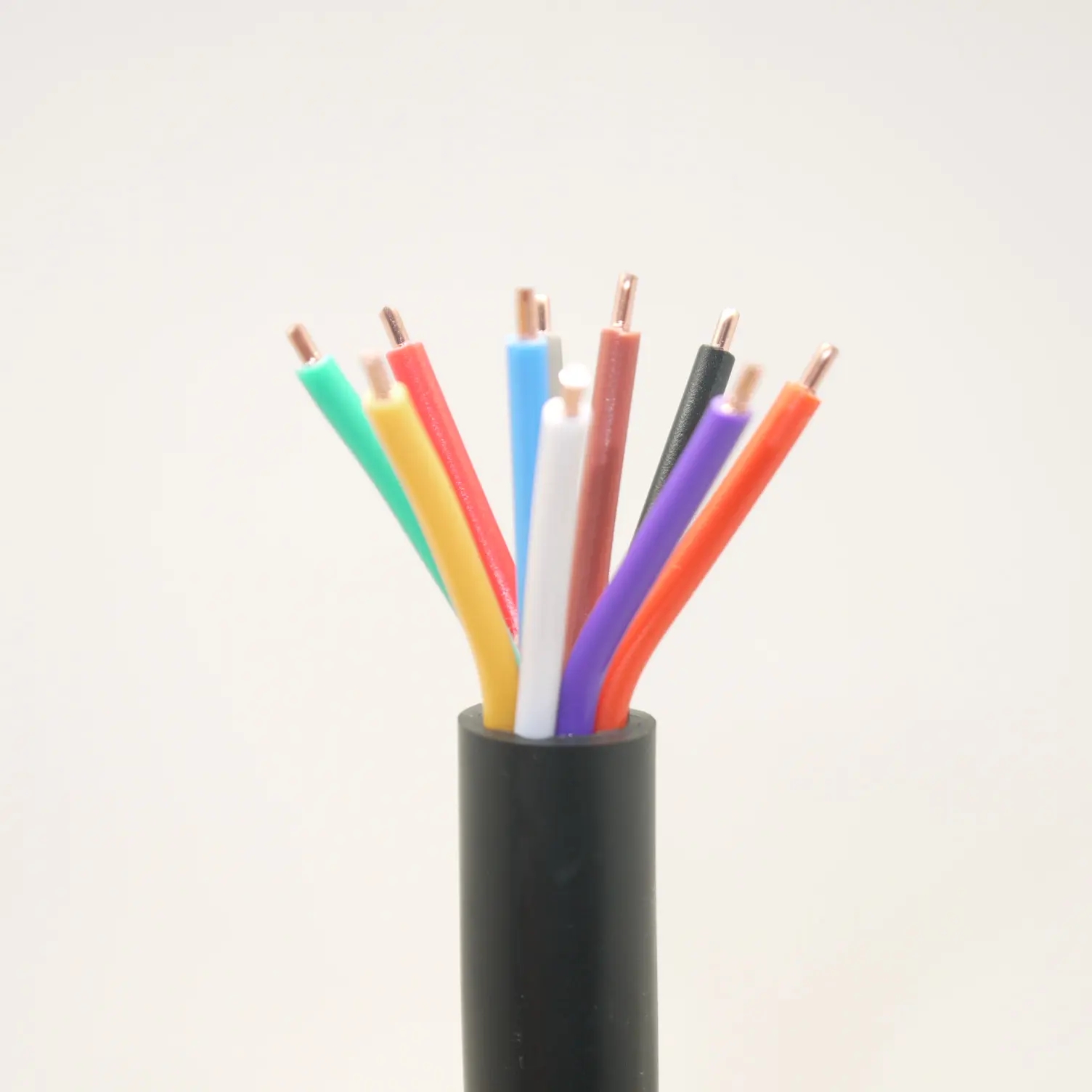

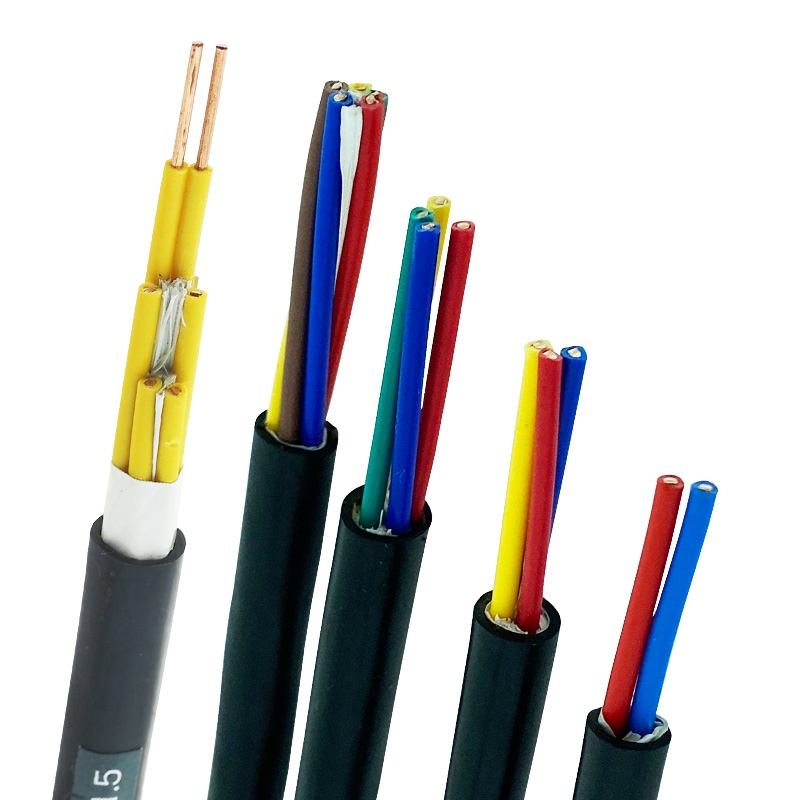

Pvc insulated control cable

Description:

Voltage level (V) Number of cores * nominal section (n*mm²) Conductor structure(N/mm) The average diameter(mm) Maximum DC color
resistance (20℃)
(Ω/km)

450/750V 2*1.5 1/1.38 7.9-9.5 12.1 black
2*2.5 1/1.78 9.0-10.9 7.41
2*4 1/2.25 9.9-11.9 4.61
2*6 1/2.76 10.8-13.1 3.08
3*1 1/1.12 7.4-8.9 18.1
3*1.5 1/1.38 8.3-10.0 12.1
3*2.5 1/1.78 9.5-11.5 7.41
3*4 1/2.25 10.5-12.7 4.61
3*6 1/2.76 11.5-13.9 3.08
4*1.0 1/1.12 7.9-9.6 18.1
4*1.5 1/1.38 9.0-10.9 12.1
4*2.5 1/1.78 10.4-12.5 7.41
4*4 1/2.25 11.4-13.8 4.61
4*6 1/2.76 13.2-15.9 3.08
5*1 1/1.12 8.6-10.3 18.1
5*1.5 1/1.38 9.7-11.7 12.1
450/750 5*2.5 1/1.78 11.3-13.6 7.41 black
5*4 1/2.25 13.0-15.7 4.61
5*6 1/2.76 14.3-17.3 3.08
7*1 1/1.12 9.2-11.1 18.1
7*1.5 1/1.38 10.5-12.7 12.1
7*2.5 1/1.78 12.8-15.5 7.41
7*4 1/2.25 14.1-17.1 4.61
7*6 1/2.76 15.6-18.8 3.08
8*1 1/1.12 10.2-12.3 18.1
8*1.5 1/1.38 11.7-14.1 12.1
8*2.5 1/1.78 14.3-17.2 7.41
8*4 1/2.25 15.8-19.0 4.61
8*6 1/2.76 17.4-21.0 3.08
