| Product name: | twisted pair shielded wire |
| Product model: | RVVPS 2*2*2.5 |
| Product Description: | |
| Conductor: | 78/0.2 BC, OFC oxygen-free copper stranded, flexible conductor structure; |
| Insulation: | PVC new material, ID3.7, insulation color: red/blue, white/yellow; |

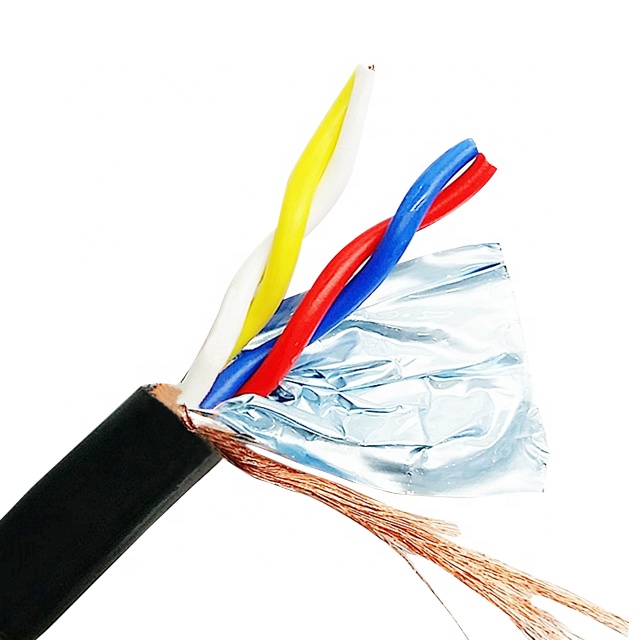

| Pair twist: | twist according to chromatogram, 2 pairs; |

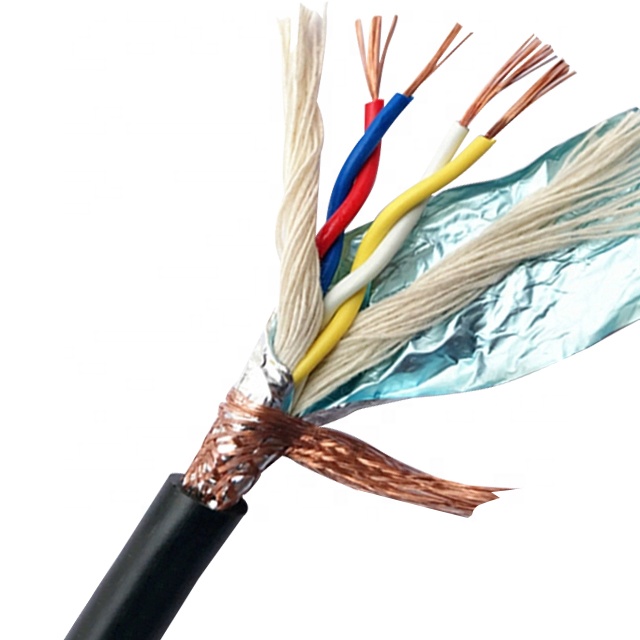

| Cable formation: | 2 pairs plus filling and stranding; |

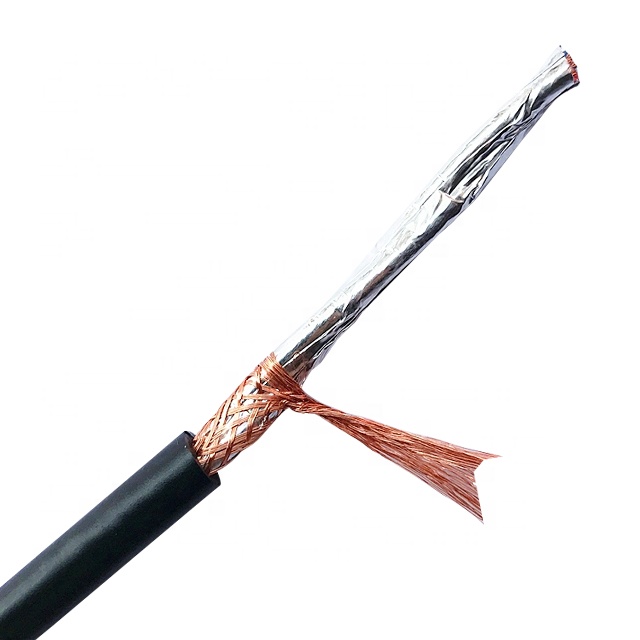

| Shielding: | 100% aluminum foil shielding + woven mesh 216/0.1 BC pure copper structure, strong anti-interference ability; |
| Sheath: | black new material PVC, OD14.7, extruded structure, to provide the best protection for the core; |
| Logo: | printing meter to ensure the length is accurate, easy to measure and cut during installation and use; |

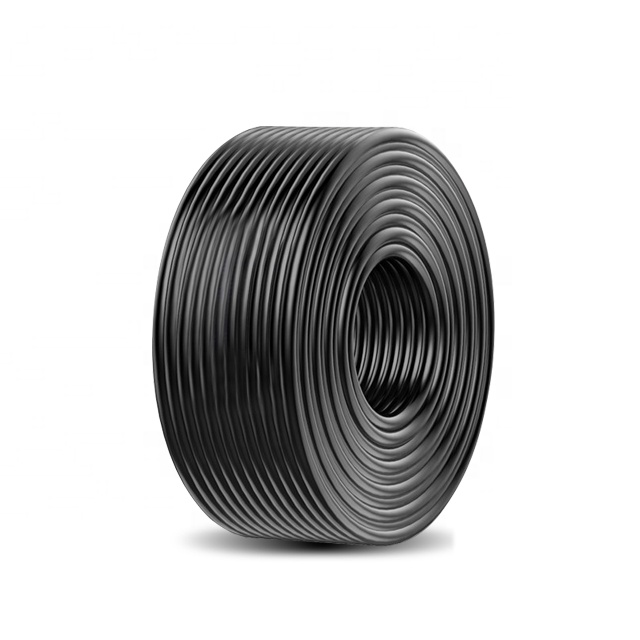

| Packing: | 100 meters |
| Product Usage: | Control line of medium speed ball machine and high speed ball machine; |
| Twisted twisted shielded wire is suitable for power control signal transmission. The core adopts a twisted structure and has strong interference suppression capability. It is especially suitable for the transmission of RS485/RS422/RS232 industrial control signals, also called "RVSP", "RVPS" or RS485 dedicated transmission line. | |
| It can be used instead of imported products, one pair of wires transmits control signals, and one pair of wires transmits power signals. | |
| The characteristic impedance is 120 ohms. | |
