| Product name: | shielded wire for electrical equipment |
| Model specification: | RVVP 12*0.3 (128 series) |
| Product standard: | JB/T 8734.5-2016 |
| Conductor: | 16/0.15 oxygen-free copper (OFC BC), fine copper wire stranded soft conductor structure; |

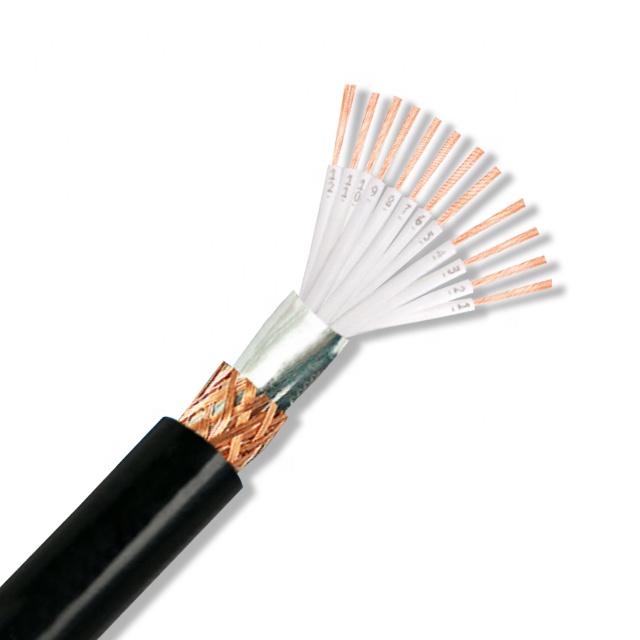

| Insulation: | PVC new material ID1.7 11 core white (identified by the number 1-11) + double color (ground wire), easy to install and use; |
| Cable formation: | 12-core layered regular stranding, wrapped with moisture-proof PET tape; |

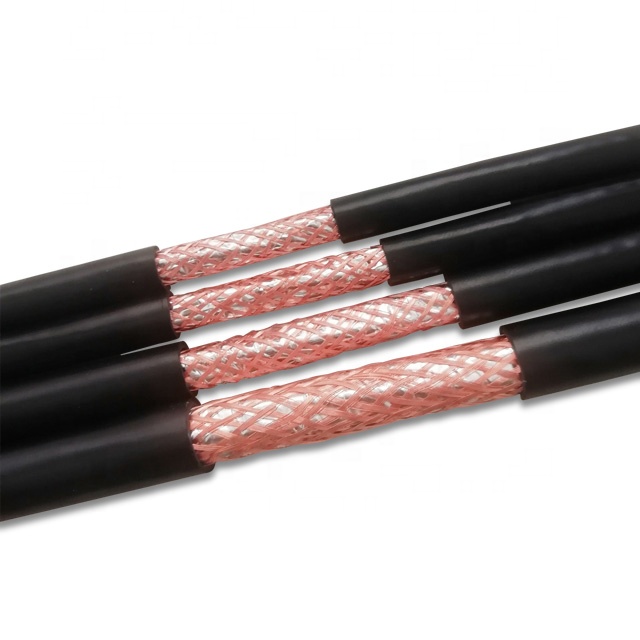

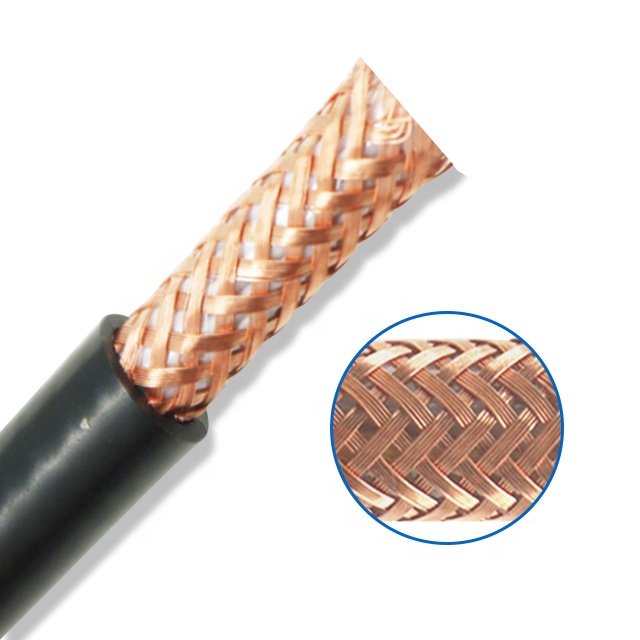

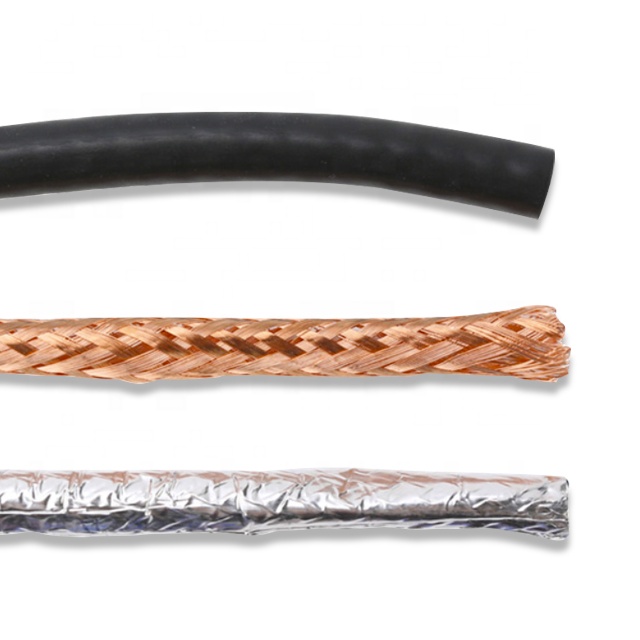

| Shielding: | longitudinally wrapped aluminum foil, 100% shielding, anti-high frequency interference + braided 128*0.1 OFC BC, anti-low frequency interference, double shielding structure, excellent anti-interference performance; |
| Sheath: | new black PVC material OD9.2 new material for sheath and insulation, better protection performance; |
| Logo: | Printed meter meter, easy to use, cut and calculate the amount to ensure full meter; |

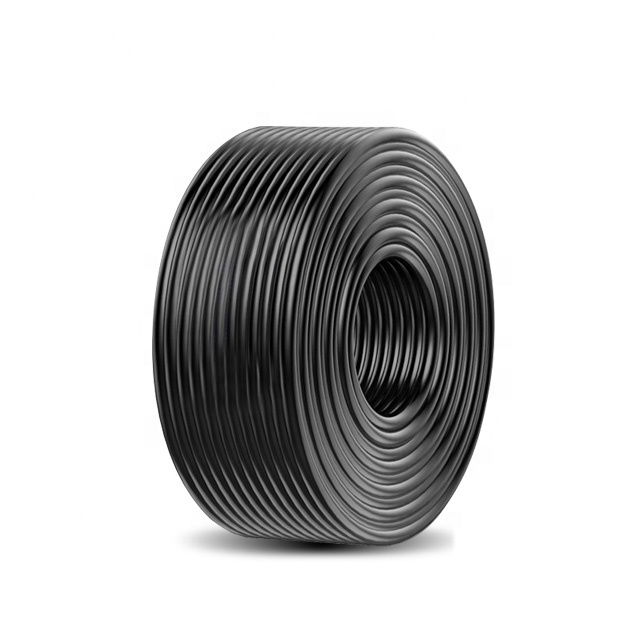

| Packing: | 100m/roll /can be packaged according to customer requirements |
| Product Usage: | Flexible conductor structure, PVC insulation, aluminum foil + braided shield, PVC sheath. |
| It is used in the connection of anti-interference cables such as intelligent building automation control system, anti-theft alarm system, fire protection system, three-meter self-reading system, communication, audio, sound system, instrumentation, electronic equipment and automation equipment for signal transmission and control operation , The cable has good anti-interference performance and is more suitable for safe signal transmission. |
