Access control system visual intercom

Product  Name:

PVC Shielded wire (300/300V)

Model Specification:

RVVP 6x0.5(112 series)

Product Standards:

(REF)JB/T 8734.5-2016

Conductor:

16/0.2 BC (OFC oxygen-free copper), soft conductor stranded structure, suitable for mobile use in general occasions;

Insulation:

New PVC material, ID2.0, 5-core white (printed number 1-5) + two-color (ground wire), convenient for wiring installation and identification;

Cable:

6-core and center non-hygroscopic material stranded, wrapped with waterproof PET tape;

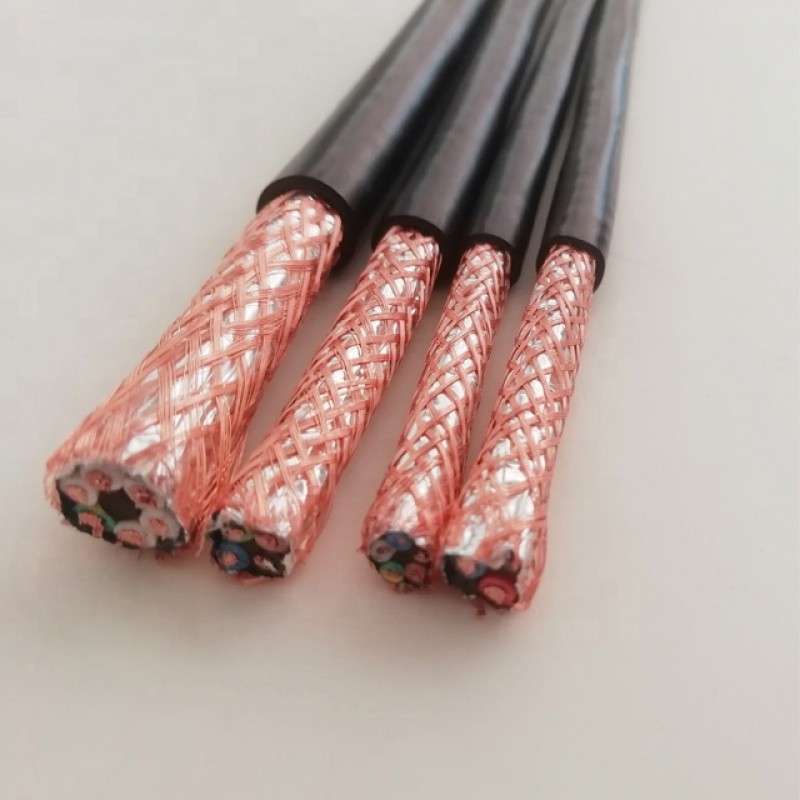

Shield:

Aluminum foil 100% shielding + woven copper mesh 112/0.1 BC, double-layer shielding structure, strong anti-interference ability;

Jacket:

Black PVC new material, OD8.2, semi-extruded structure, providing the best protection performance

Logo:

Printed meter meter, easy to measure and cut during installation, to ensure correct length.

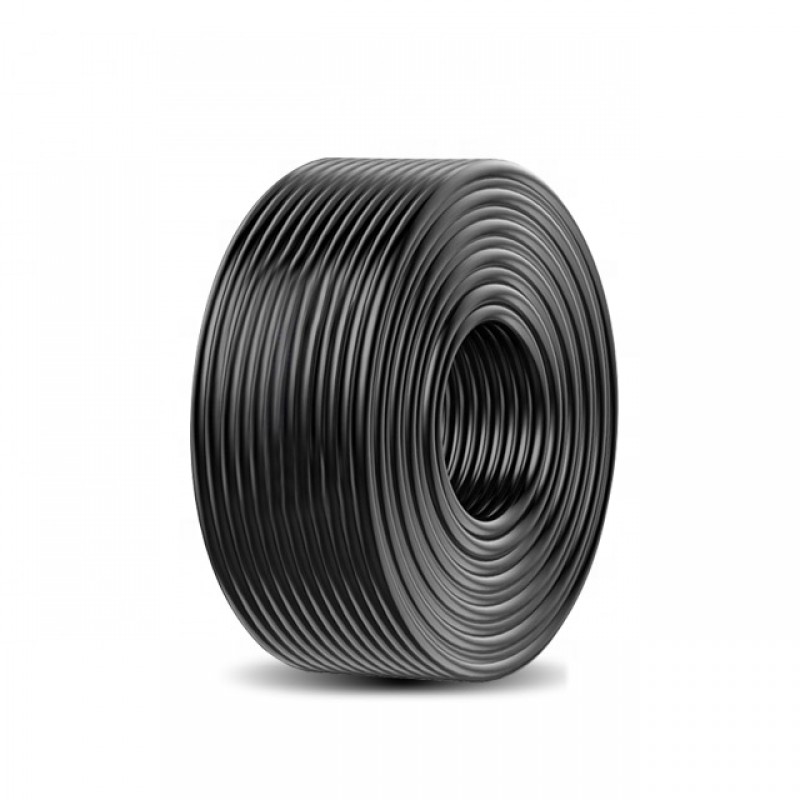

Package:

100m

Size:

32x32x12cm

Weight:

11.8KG

Product Usage:

The power signal control transmission cable for equipment connection is used to connect the equipment to the operation panel and transmit signals;

Access control video intercomcable|Signal connectioncableof card reader; floor controlcable, ladder controlcable, audio cable...
